Muzata Triple Row LED Strip – 16.4ft 12V Cuttable Tape for DIY Under-Cabinet and Accent Projects
Muzata Triple Row LED Strip – 16.4ft 12V Cuttable Tape for DIY Under-Cabinet and Accent Projects
Couldn't load pickup availability
Why you'll love it

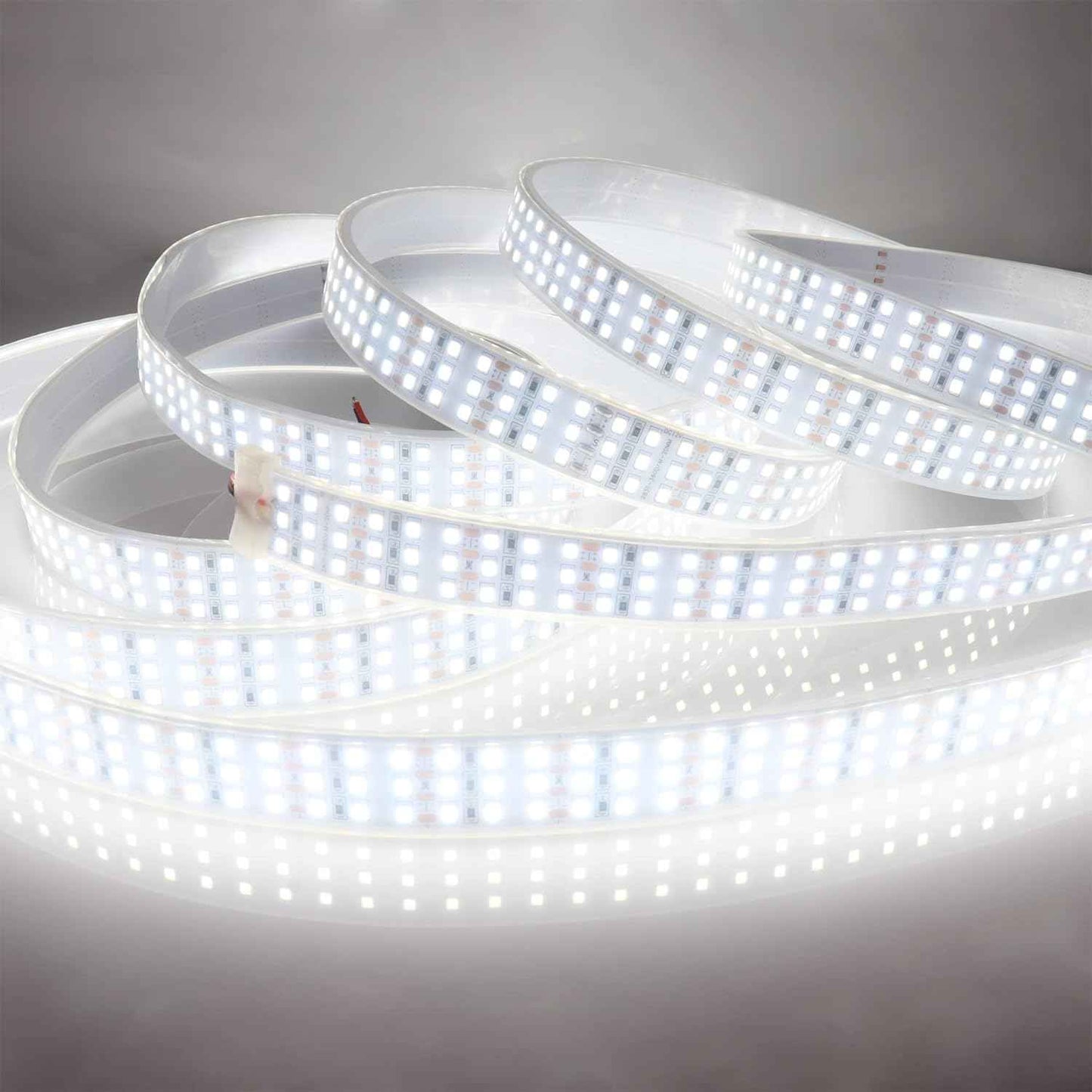

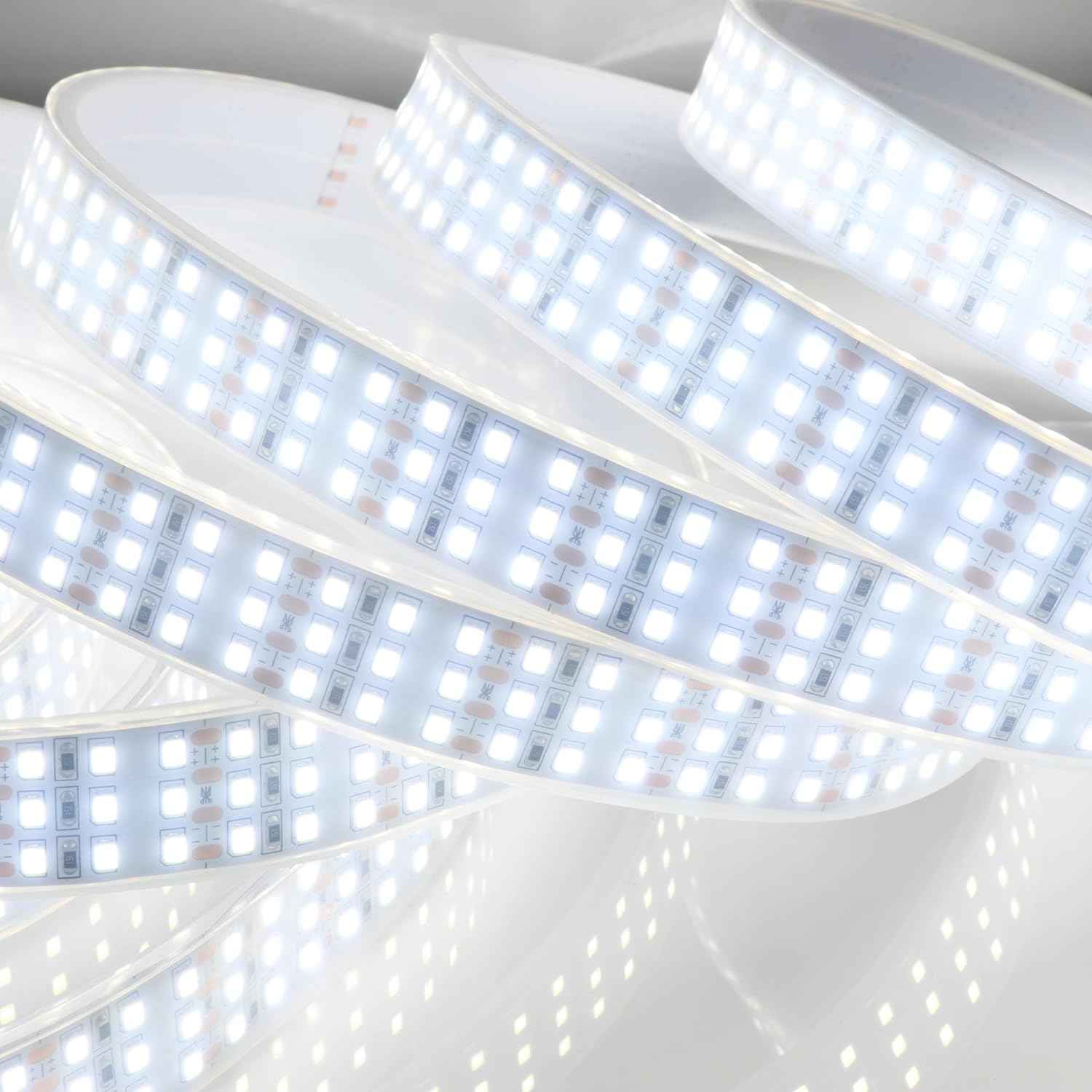

- Triple-row 360 LEDs/m density delivers exceptionally uniform, hotspot-free brightness (3022LM/m) that outperforms single-row strips
- 12V DC low-voltage operation and low heat make the strip touchable and safe for homes with kids or pets

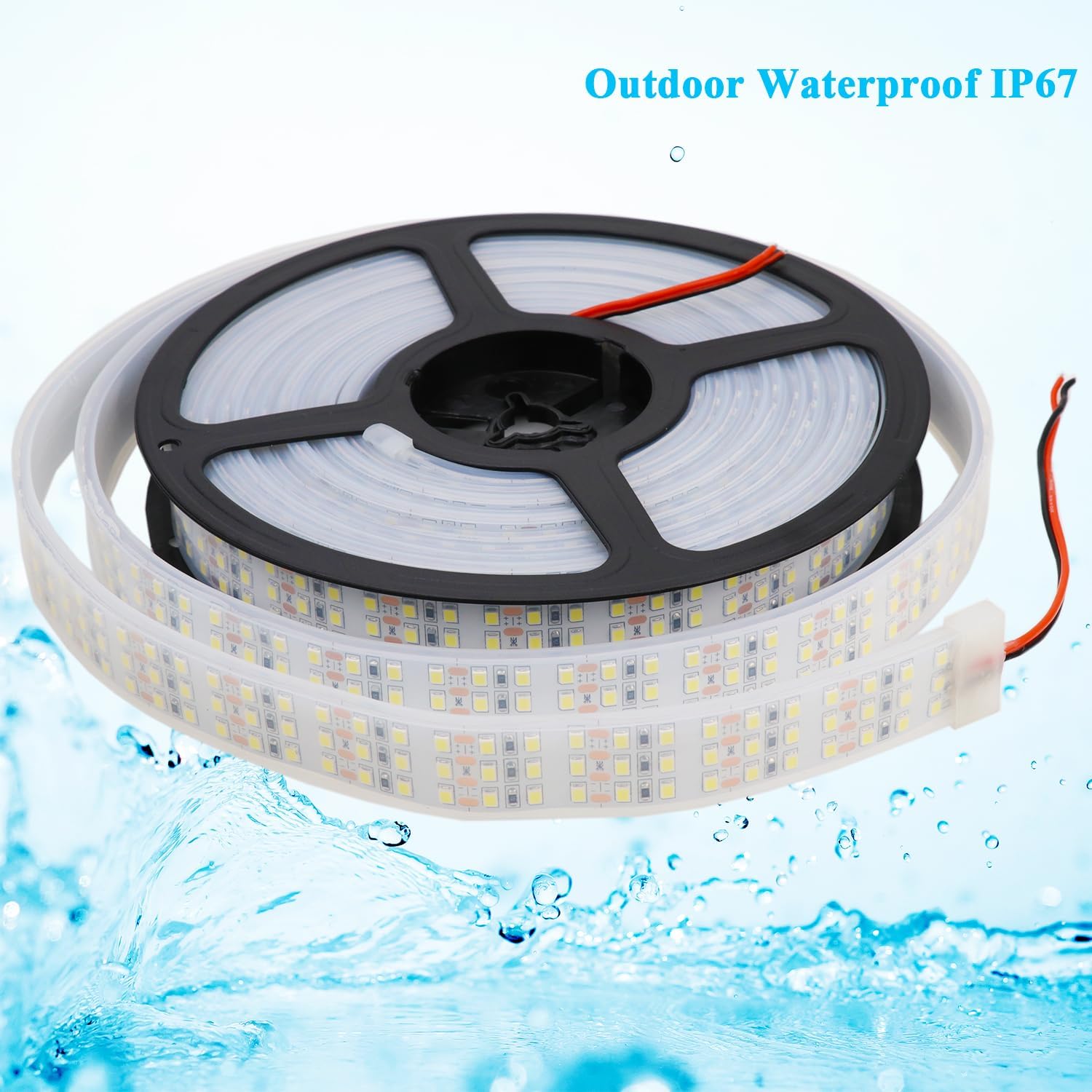

- IP67 waterproof variant opens up genuine outdoor and vehicle use, while IP20 option saves cost for indoor-only projects
- Cuttable every 9 LEDs and strong self-adhesive backing enable custom-length, tool-light DIY installs without an electrician
- Dimmable with a separate controller allows mood/ambient tuning from task brightness down to accent glow
- 16.4ft roll covers most room or vehicle runs in a single piece, reducing splice points and voltage drop
Perfect for
- Illuminate dark kitchens and under-cabinet workspaces with bright daylight white light
- Custom-cut and link strips for tailored DIY accent lighting projects in bedrooms or offices
- Add high-output lighting to truck beds, wheel wells, or vehicle interiors for off-road or show builds

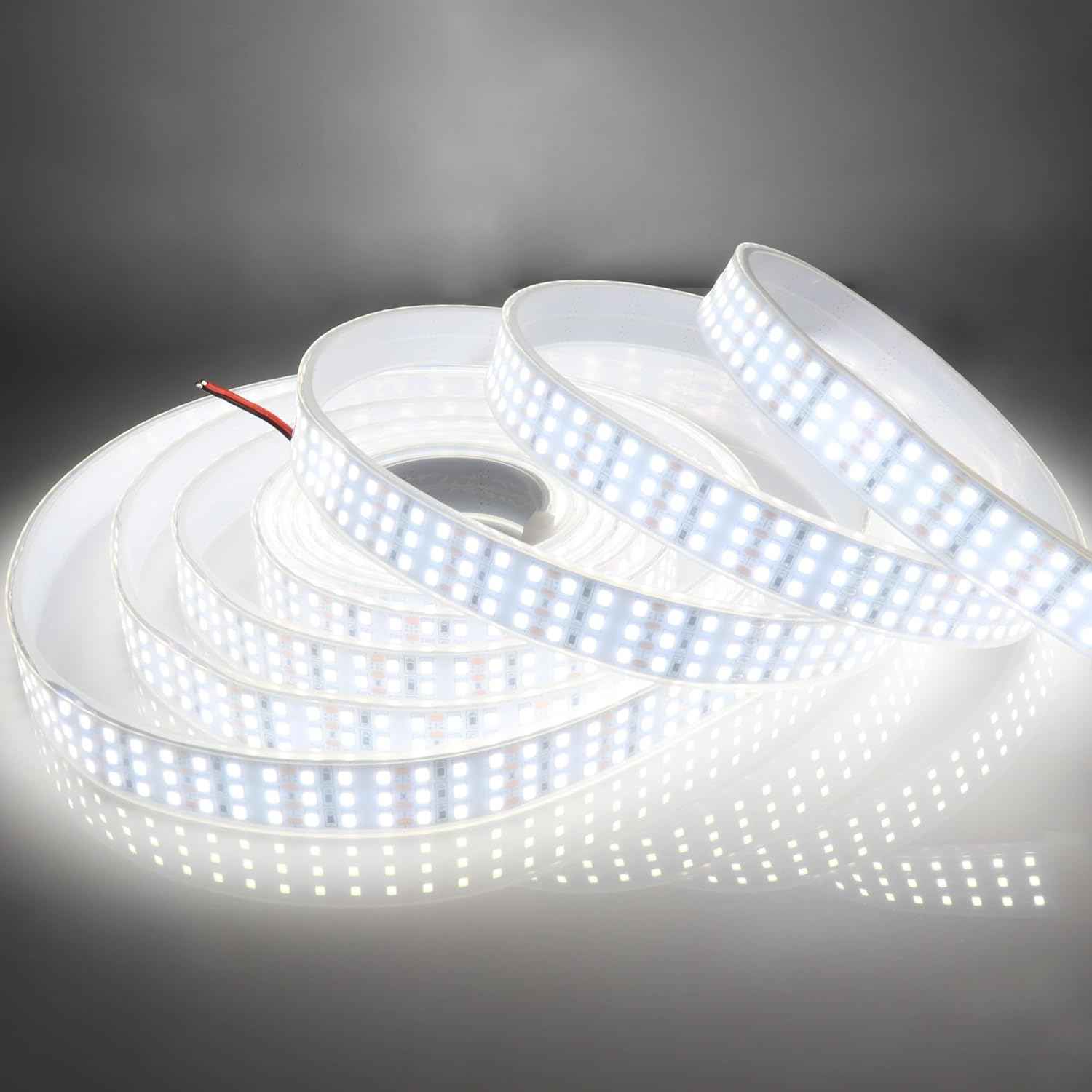

- Backlight retail display cases, restaurant bars, or signage with uniform 6000K daylight
- Replace fluorescent under-cabinet fixtures with low-heat, dimmable LED tape
Super Bright 3 Rows 1800LEDs SMD 2835 6000K Daylight White LED Strip Lights
- Easy To Install

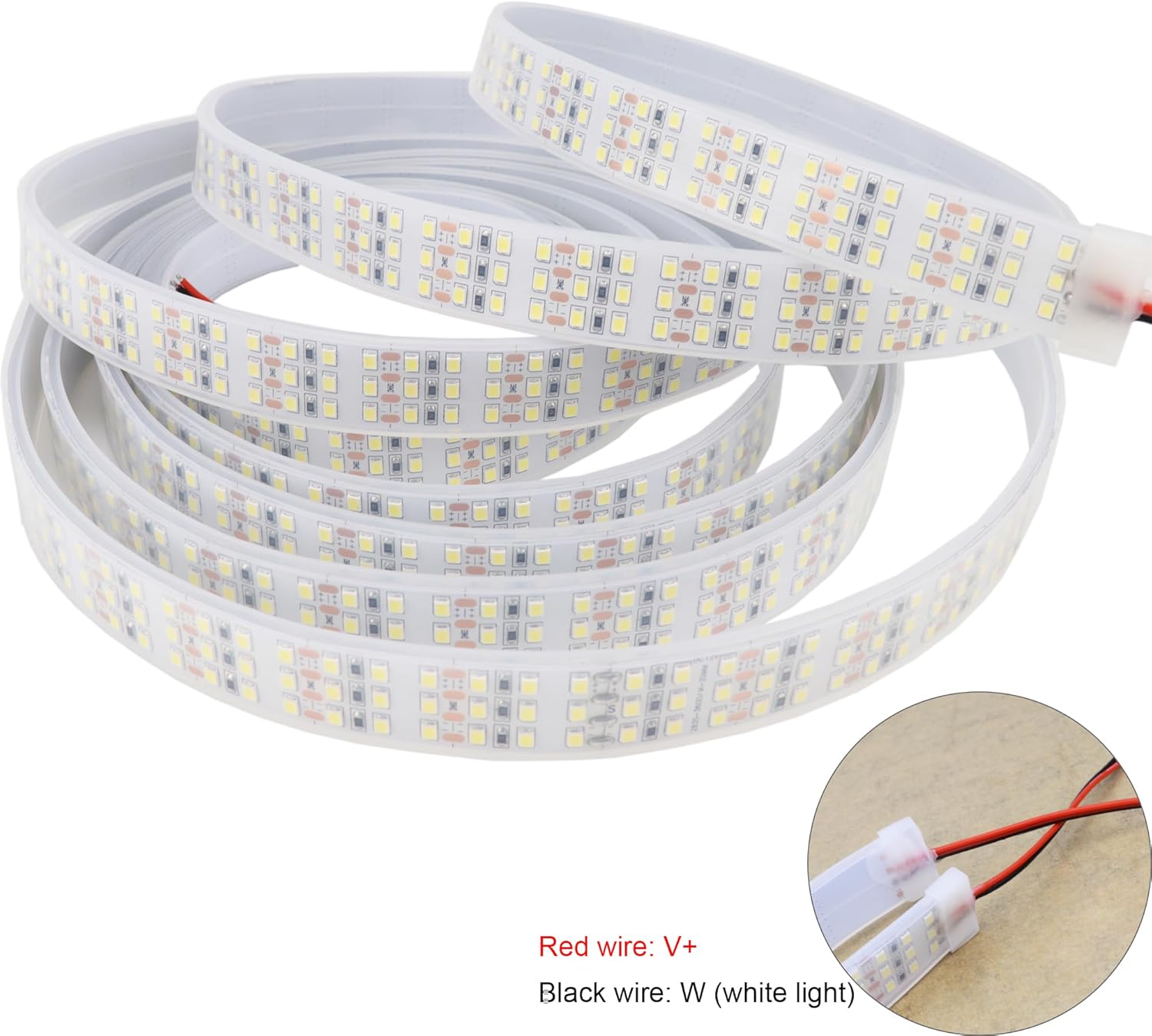

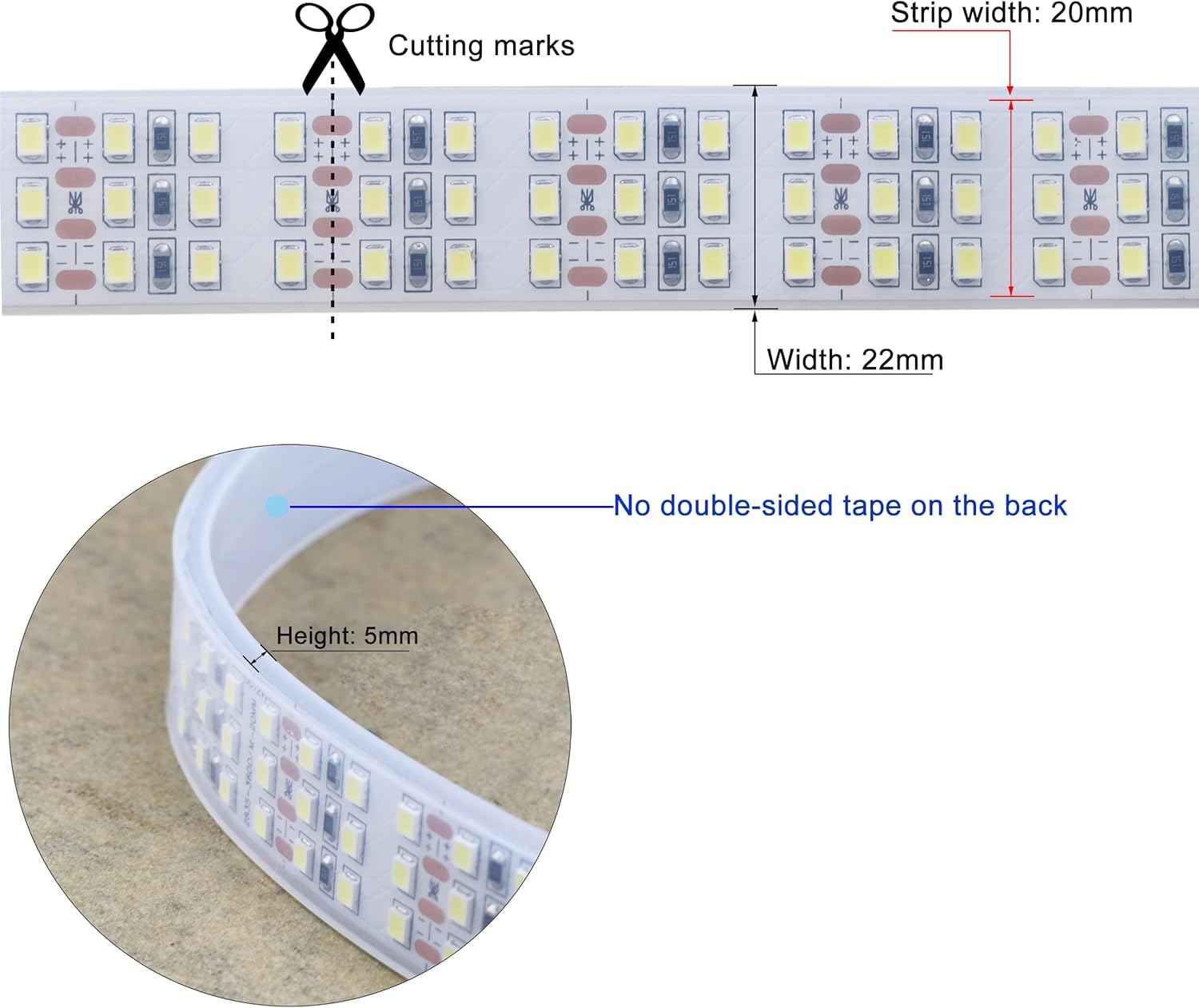

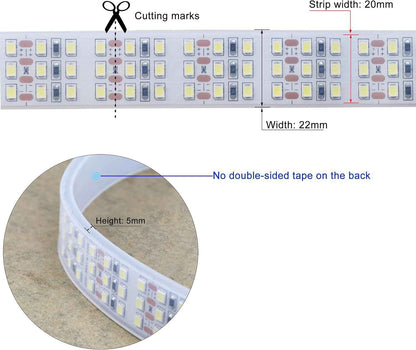

The LED strip can be cut every 9 LEDs according to the cutting marks, making it ideal for effortless DIY projects. Casing waterproof IP67 too heavy, no double-sided adhesive on the back. Comes with 6 fixing clips to firmly fix the LED strip light and prevent it from falling off.
- Applications
Widely used in various living, working and home lighting.
Light up hotels decoration use,Theaters, clubs, shopping malls, festivals and performances.
- Packaging
Only the 16.4ft White LED strip is included.
- WARNING
Before connecting to the power supply, please unfold the LED strip completely to ensure sufficient heat dissipation.
Connection Instructions
TAKE NOTE: the LED Strips maximum run length is 5 meters. After the maximum run length the voltage drop becomes too great and you will lose light and efficiency from your system. If your application needs more than the maximum run length you will have to get another power supply or run wire from the extra strip directly back to the first power supply (wiring in parallel).
Product Information

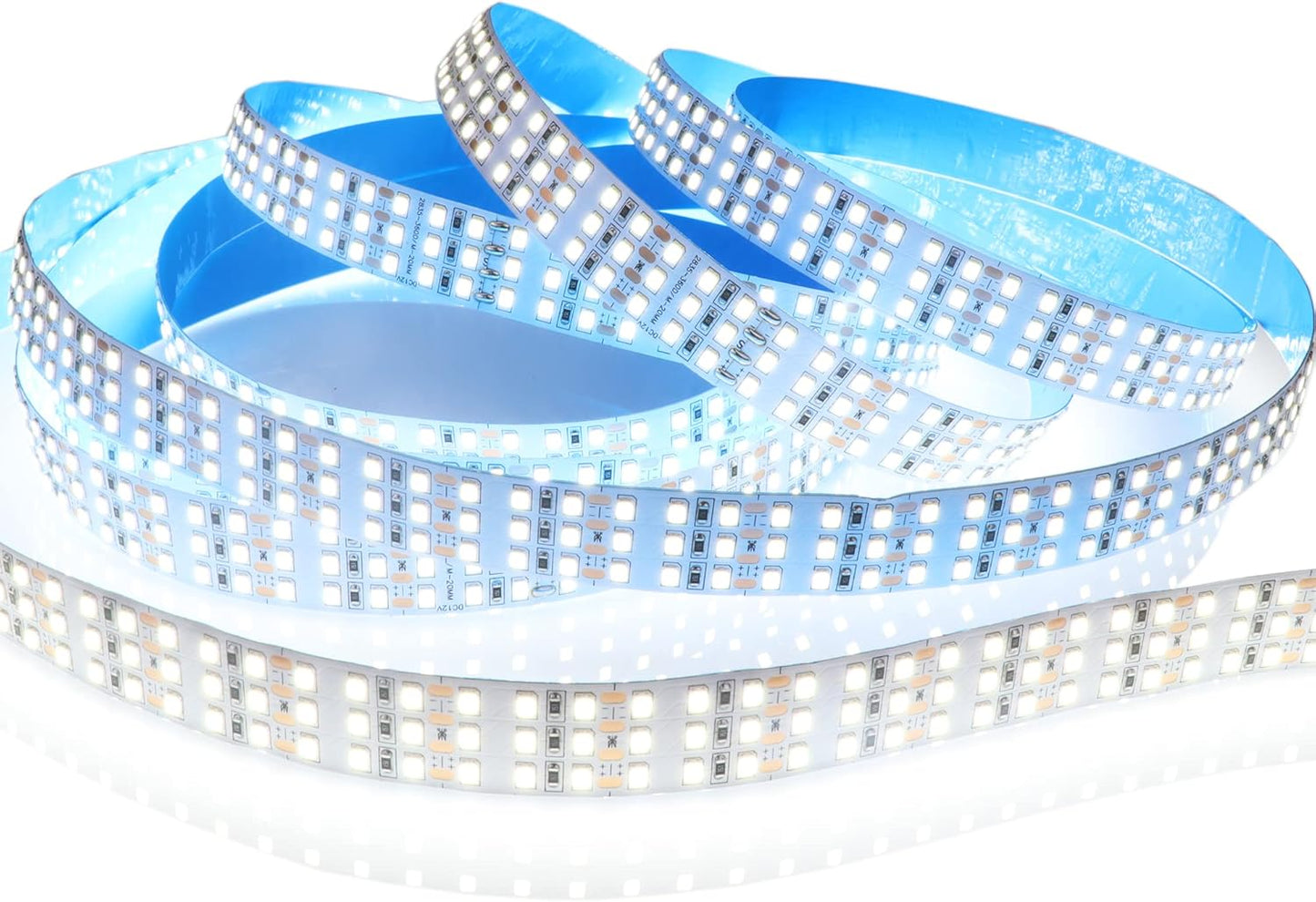

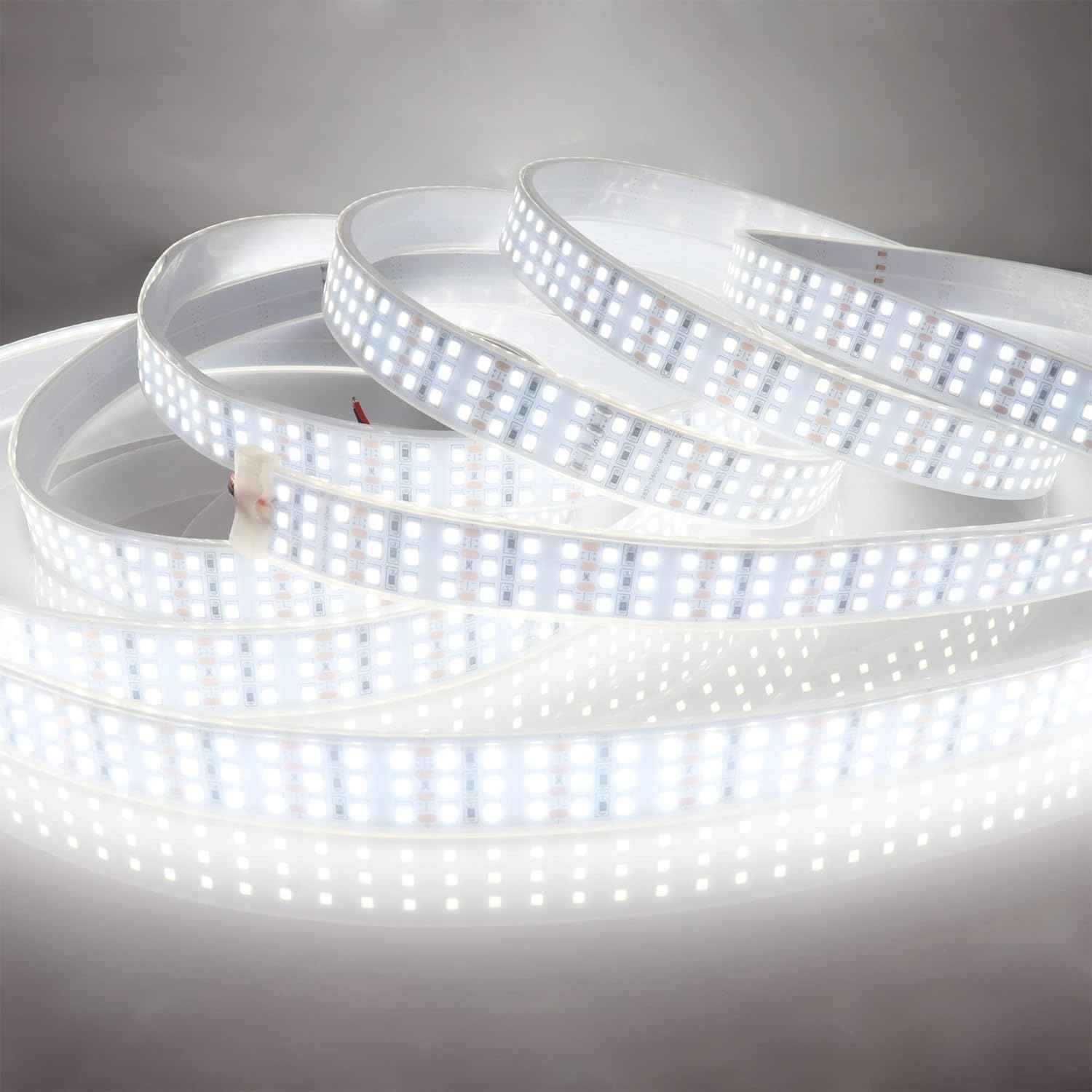

Super Bright Triple Row: 16.4ft white led strip lights with 360LEDs per meter high-brightness LEDs, generates up to 3022LM per meter of brightness, enough to illuminate those dark rooms, under cabinets, decorate and brighten up the home. Safe to use: LED light strips operates at DC 12V with very low heat. It is touchable. The excellent heat dissipation makes it more durable and reliable. Linkable & Cuttable:The LED strip lights can be cut along the cutting mark every 9 LEDs(3 rows), making it perfect for easy DIY projects. The strong self-adhesive tape allows for easy mounting on installation surfaces. Packaging: Only the 16.4ft/5M white LED strip light is included. The DC 12V power supply and LED dim controller need to be purchased separately. Note: Do not light the LED strip lights while it is still on the reel.Please unroll the LED strip lights for proper heat dissipation.The non-waterproof IP20 LED strip is suitable for dry locations use only and can be used for decorative lighting in kitchens, bedroom, offices, display cases, restaurants, under cabinet.
Features & Specs Indoor Outdoor Usage Outdoor Additional Features Waterproof Light Source Type LED Power Source DC Light Color Bright White Color Temperature 6000 Kelvin Controller Type Button Control Voltage 12 Volts (DC) Wattage 150 watts Control Method Remote Water Resistance Level Water Resistant Style Color White Theme Indoor Occasion Christmas Product Style Modern Measurements Number of Light Sources 1800 Number of Items 1
Frequently Asked Questions
How easy is it to cut this strip to a custom length for a DIY project?
Very easy. Cut lines are clearly marked every 9 LEDs (about 1.5 inches). Use sharp scissors on the marked line, then either solder to a connector or use solderless clip connectors. No electrician is required for low-voltage 12V DC work.
Can I link multiple cut pieces back together to fit an odd-shaped space?
Yes. Use 4-pin solderless connectors or solder jumper wires between cut sections. Many DIYers build L-shapes, T-shapes, and corners this way for kitchens, closets, and display cases. Just keep total run length in mind to minimize voltage drop.
Do I need any special tools to install this strip?
For most installs you only need scissors, a clean cloth, and a measuring tape. For cut-and-link sections, add solderless clip connectors or a basic soldering iron. An aluminum channel with a diffuser is optional but recommended for a pro finish.
Will the self-adhesive hold without screws or mounting clips?

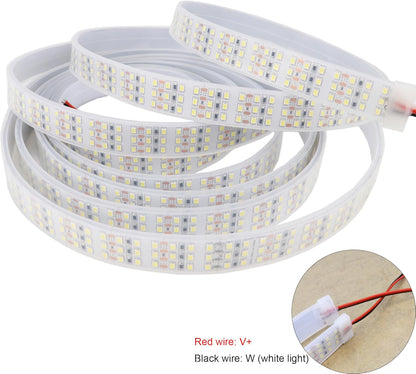

On clean, smooth, dust-free surfaces, the 3M-style backing is strong enough for most under-cabinet, cove, and shelf installs. On porous, textured, or outdoor surfaces we recommend adding aluminum channel or 3M VHB tape for long-term hold.
Can I dim this strip for a project that needs both task and mood lighting?
Yes. Add a compatible 12V LED dimmer controller (sold separately) and you can run the strip from full task brightness down to a soft accent glow with a single knob or remote. One strip, two moods.
Is this a good DIY gift for someone who likes home projects?
Absolutely. It bundles well with an aluminum channel kit, a 12V dimmer, and a 12V power supply into a ready-to-install starter bundle. It's the kind of upgrade a DIYer can finish in an afternoon and actually use every day.
How does a triple-row strip compare to a standard single-row strip for DIY builds?
Single-row strips show LED hotspots on shallow surfaces and need extra diffusion. Triple-row 360 LEDs/m gives a continuous line of light out of the box, which means less aluminum channel, less diffuser, and a faster, cleaner install.
Can I use the same strip for both a home DIY project and a truck bed?
Yes, but pick the right variant. Use IP20 for the kitchen, bedroom, or office and IP67 for the truck bed, wheel wells, or any outdoor location. Both variants use the same LED layout and 12V DC operation, so wiring is identical.
Is this strip safe to handle while I'm building the install?
Yes. 12V DC and low heat output mean the strip is touchable during and after install. There is no risk of electrical shock at 12V, and the surface stays cool enough to handle without gloves.
What power supply do I need to run the full 16.4ft roll?
A 12V DC power supply rated for at least 60W (5A) is the typical safe match for a full 5-meter roll at full brightness. Undersizing the supply causes dimming at the far end of the run, so leave headroom.
Can I run two rolls end-to-end from one power supply?
Yes, as long as the power supply is rated for the combined wattage and you wire the two rolls in parallel rather than daisy-chaining more than 5 meters in series. Long series runs cause voltage drop and uneven brightness.
Will the strip yellow or fade after a year of use?
Quality SMD 2835 emitters at proper 12V drive currents typically hold brightness and color well for tens of thousands of hours. Avoid running the strip fully sealed in a hot, unventilated channel to maximize lifespan.
How do I install this LED strip light?
Plan your layout and measure the run. Cut the strip only on the marked cut lines every 9 LEDs. Peel the 3M backing, press firmly onto a clean, dry surface, wire the strip to a 12V DC power supply matching the wattage, and add a dimmer controller if desired.
What power supply do I need?
A regulated 12V DC power supply rated for at least the total wattage of the strip run. A 5-meter roll typically needs a 12V 5A (60W) supply. Use a UL-listed driver and leave 20% headroom for long-term reliability.
How do I cut and reconnect the strip?
Cut only along the marked lines between the copper pads. To reconnect, either solder jumper wires to the pads or use 4-pin solderless clip connectors. Make sure polarity is consistent across all connected pieces.
Is this strip compatible with standard 12V LED dimmers?
Yes. It works with any 12V DC LED dimmer controller sized for the run, including inline knob dimmers, RF remotes, and smart Wi-Fi dimmers. Match the dimmer's amperage to the strip's draw for smooth, flicker-free dimming.
Will this work with my existing 12V battery, solar setup, or off-grid power?
Yes. Any clean 12V DC source in the 11V–14.4V range will run the strip. Common matches include car batteries, motorcycle batteries, 12V solar charge controllers, and portable 12V lithium power stations.
What comes in the box?
One 16.4ft (5m) roll of LED strip in the variant you selected (IP20 or IP67). A 12V DC power supply, dimmer controller, connectors, and aluminum mounting channel are typically sold separately so you can size them to your project.
Is this LED strip safe to leave on for long periods?
Yes. 12V DC operation and efficient SMD 2835 LEDs keep the strip cool to the touch, and the strip is rated for tens of thousands of hours of continuous use. Use a UL-listed power supply and avoid sealing the strip in an airtight enclosure.
What is the warranty and what if a section stops working?
The strip is covered against manufacturing defects. If a section fails, you can cut out the affected segment on the cut lines and link in a replacement piece rather than replacing the entire roll, which makes troubleshooting straightforward.
What's the difference between an LED strip light and LED rope light?
LED strip lights are flat, flexible tape with closely spaced surface-mount LEDs, cuttable to length, and ideal for hidden installs under cabinets, in coves, and along edges. LED rope light is a thicker cylindrical tube with widely spaced LEDs inside, typically used for outline and holiday lighting and not cuttable to fine increments.
